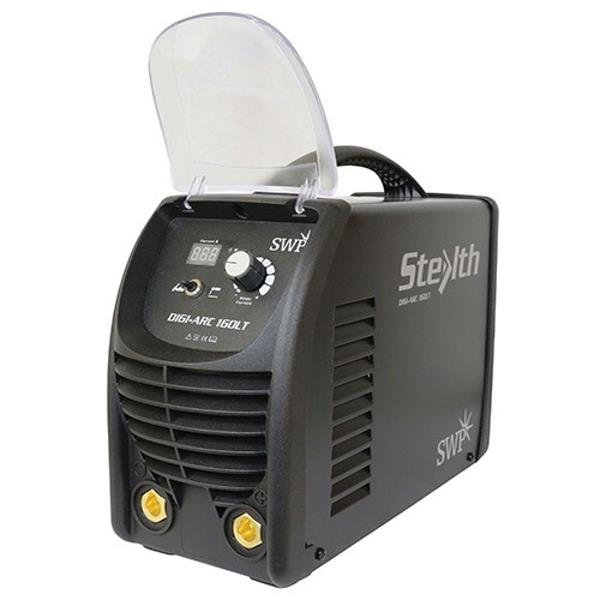

SWP Stealth Digi-Arc 160Lt Arc Welder 9021H

€260.00 Ex. VAT

Code 9021H

The latest 160 amps MMA inverter welder from from Stealth.
Hot start,Lift/Tig facility,
PFC power factor control -which helps stabilise and smooth out the input supply.
rugged internal support frame,generator friendly,ideal for site.

Add to Basket
Additional Info

4MM max electrode diameter
Weight - 4.5KG
Generator friendly
Duty cycle - 40% @ 160A
Lift TIG capability
Hot start

Delivery Info

Free delivery on orders over €50/£50 + VAT to Ireland & UK on orders placed online only!

  • €4.05+VAT to Ireland & UK up to 25kg
  • €19.95 + VAT for rest of Europe on orders up to 25kg
  • Orders over 25kg to European countries is dependent on size and weight of order

We aim to provide next day delivery on all small items, 48 hour delivery to UK & Europe. Find out more information on our delivery.

Click to view complete product details

Input Power Voltage (V) 230+15%

Frequency (Hz) 50/60

MMA TIG

Effective input current (A) 17 24

Maximum (KVA) 8.5

Adjustment range of current (A) 10-160

Maximum no load Voltage (V) 62

Rated duty cycle (40deg 10 min) 40% @ 160A

60% @ 135A

100% @ 105A

Efficiency (%) <85

Protection class Ip23

Insulation class H

Cooling Air

Electrode diameter (mm) 1.6-4.0

Electrode type 6013,7018, ect

Overall dimensions (mm) 290 x 135 x 220

Weight (kg) 4.5
