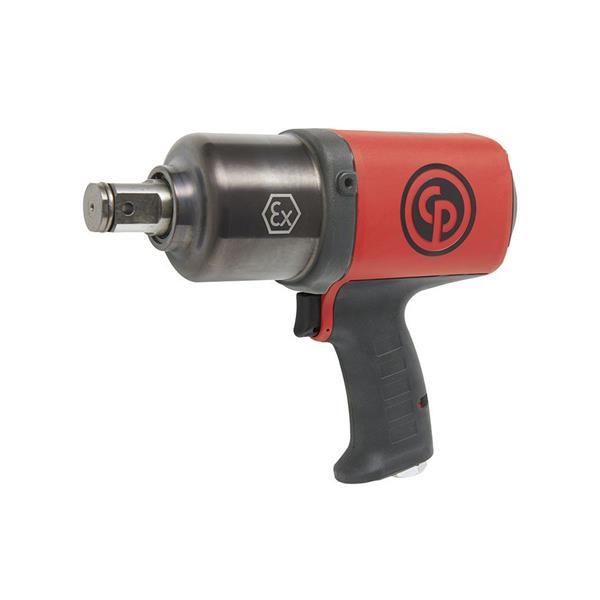

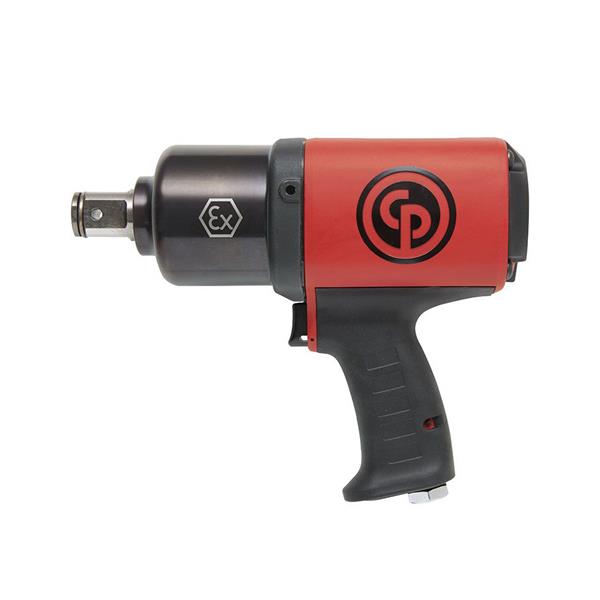

Chicago Pneumatic 1" Atex Pneumatic Pistol Impact Wrench

€795.00 Ex. VAT

New
Code CP6778EX-P18D


Add to Basket
Additional Info

The CP67XX series is engineered for high-performance industrial maintenance in the most demanding conditions. By bridging the gap between extreme power and operator safety, these tools are a staple in oil and gas, mining, and heavy manufacturing.

  • Hazardous Area Compliance: Includes ATEX-certified models specifically designed for explosive atmospheres (Zone 1 & 21).

  • Environmental Protection: Features an IP6 dust-proof rating, ensuring the internal mechanisms remain uncontaminated in debris-heavy environments.

  • Oil Bath Twin Hammer Clutch: This advanced mechanism submerges the impacting parts in a continuous oil bath. This drastically reduces heat buildup, ensures constant lubrication, and extends the service life compared to standard grease-lubricated clutches.

  • Hybrid Construction: Combines a rugged steel clutch housing for impact resistance with a lightweight composite body to minimise operator fatigue during long shifts.

  • Torque Range: Delivers a versatile power spectrum from 475 Nm up to 1750 Nm ().

Delivery & Collection Info

Free delivery on orders over €50/£50 + VAT to Ireland & NI on orders placed online only!

  • €4.95+VAT to Ireland & NI up to 25kg
  • €50 + VAT for rest of Europe on orders up to 25kg
  • Orders over 25kg to European countries is dependent on size and weight of order

We aim to provide next day delivery on all small items, 48 hour delivery to UK & Europe. Find out more information on our delivery.

For Collections you will recieve an Email when your product is ready to collect
Click to view complete product details

Top Products this month

Performance & Torque

  • Reverse Torque: Max 1750 Nm ().

  • Forward Torque: Working range of 400–1400 Nm.

  • Speed: 5100 RPM free speed with 1050 BPM (blows per minute).

  • Mechanism: Industrial Twin Hammer with Oil Bath lubrication for superior cooling and part longevity.

Design & Build

  • Output Drive: 1" Square with a dual retainer (hole + friction ring) for heavy-duty socket security.

  • Materials: High-durability composite body with an aluminium clutch housing.

  • Weight: 4.6 kg (Power-to-weight ratio: ).

  • Dimensions: 255 mm () overall length; 45 mm side-to-center clearance.

  • Ergonomics: Pistol-grip handle with trigger start; includes a suspension bail for tool balancers.

Air & Technical Requirements

  • Consumption: 26 l/s () at free speed.

  • Pressure: Max dynamic working pressure of 6.3 bar ().

  • Inlet/Hose: 3/8" air inlet; requires a minimum 13 mm () hose diameter.

Noise & Vibration

  • Sound: pressure / power.

  • Vibration: (Uncertainty K: ).
