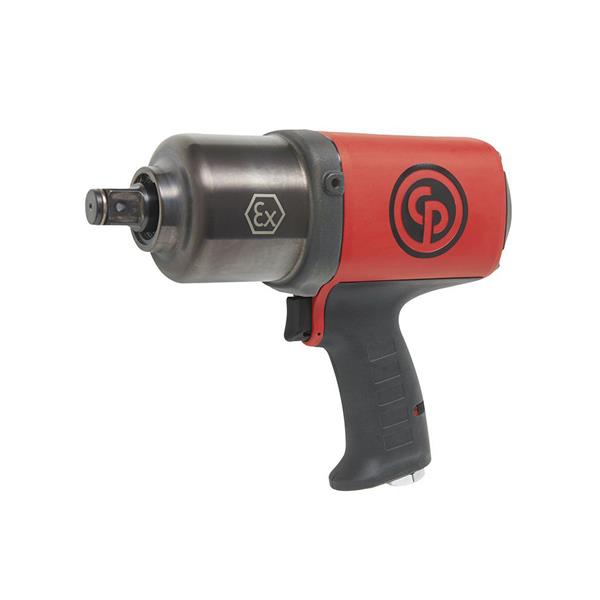

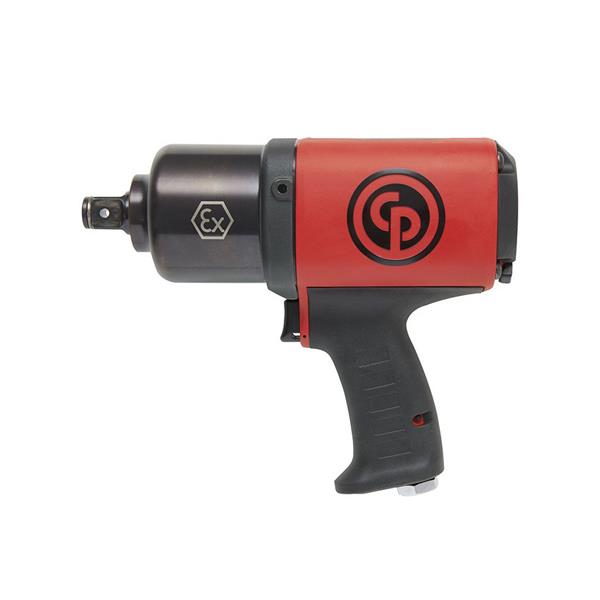

Chicago Pneumatic 3/4" Atex Pneumatic Pistol Impact Wrench

€760.00 Ex. VAT

Code CP6768EX-P18D


Add to Basket
Additional Info

  • Versatile Range: Covers applications from light assembly to heavy industrial maintenance.

  • Hazardous Ready: Includes ATEX-certified and IP6 dust-proof models, making them safe for use in zones with explosive gases or high dust concentrations.

  • Oil Bath Twin Hammer Clutch: Features a specialised mechanism where the impact components are submerged in oil. This ensures constant lubrication, superior heat dissipation, and a smoother, more durable impact.

  • Rugged Construction: Combines a high-strength steel clutch housing with a lightweight composite body to balance extreme durability with operator comfort.

  • High Torque Performance: Delivers a maximum reverse torque range from 475 Nm up to 1750 Nm (350 to 1290 ft.lb).

Delivery & Collection Info

Free delivery on orders over €50/£50 + VAT to Ireland & NI on orders placed online only!

  • €4.95+VAT to Ireland & NI up to 25kg
  • €50 + VAT for rest of Europe on orders up to 25kg
  • Orders over 25kg to European countries is dependent on size and weight of order

We aim to provide next day delivery on all small items, 48 hour delivery to UK & Europe. Find out more information on our delivery.

For Collections you will recieve an Email when your product is ready to collect
Back to results page
Click to view complete product details

Top Products this month

Performance & Torque

  • Reverse Torque: Max 1750 Nm ().

  • Forward Torque: Working range of 400–1400 Nm.

  • Speed: 5100 rpm free speed with 1050 BPM (blows per minute).

  • Mechanism: Industrial-grade Twin Hammer with Oil Bath lubrication for constant cooling and durability.

Design & Build

  • Materials: High-strength composite body with an aluminium clutch housing.

  • Drive: 3/4" Square output featuring a dual retainer (hole + friction ring) for maximum socket security.

  • Ergonomics: Pistol-grip handle with a trigger start; includes a suspension bail for use with tool balancers.

  • Weight: 4.4 kg (Power-to-weight ratio: ).

  • Compactness: 250 mm length; 45 mm side-to-center clearance.

Air & Technical Requirements

  • Pressure: Max dynamic working pressure of 6.3 bar ().

  • Consumption: 26 l/s () at free speed.

  • Inlet/Hose: 3/8" air inlet; requires a minimum 13 mm () hose diameter.

  • Vibration: 9.4 m/s² (Uncertainty K: ).

  • Sound: 94 dB(A) pressure / 105 dB(A) power.
