• 5.5 kW (7.5 HP) rotary screw compressor• 24.9 CFM free air delivery• Maximum working pressure: 10 Bar (145 PSI)• Refrigerated dryer included (CDRY version)• Low noise output: 67 dB(A)
• 400V / 50Hz / Three Phase power supply• 200 Litres receiver-mounted configuration• Direct drive system for high efficiency• Continuous duty operation• Low maintenance and easy servicing

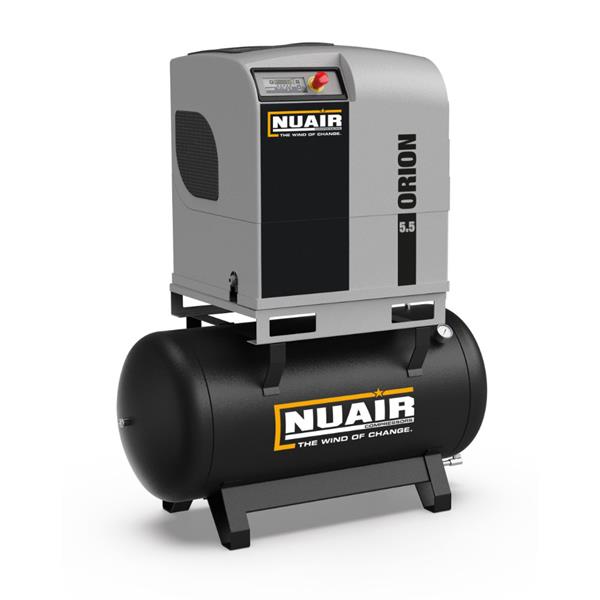

The ORION 5.5-10-200 CDRY (400V) is a high-performance rotary screw air compressor supplied with refrigerated dryer, delivering 24.9 CFM at up to 10 bar. Designed for professional users, it offers reliable continuous-duty performance with the added benefit of cleaner, drier compressed air.Unlike traditional piston compressors, the ORION range uses direct drive screw technology for smoother, quieter operation, efficient power transfer and dependable air delivery throughout the working day.Its 200-litre receiver-mounted design provides a practical compressor and dryer package, ideal where cleaner, drier compressed air is required without building a larger system.
We aim to provide next day delivery on all small items, 48 hour delivery to UK & Europe. Find out more information on our delivery.
Tank Size: 270kW: 5.5HP: 7.5M3/h: 42.3CFM: 24.9bar: 10PSI: 145dB(A): 63Connection: 1/2"KG: 206Lbs: 454Net dimensions: 120x60x150GW:246Gross Dimensions: 132x85x172
