The foam inserts in detail:

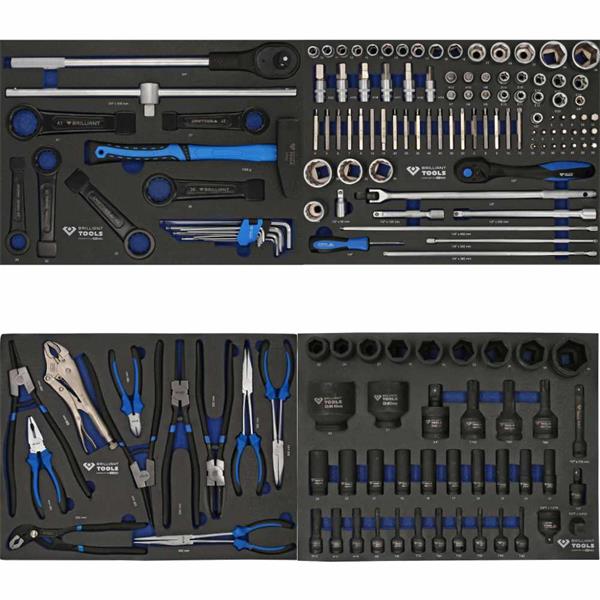

Drawer 1:
socket wrenches and bits, 89 pcs.
with 1/4“ (6.3 mm) drive:
-1 square screwdriver
-1 each extension 300, 380, 450 mm
with 3/8“ (10 mm) drive:
-1 bit adapter for 10 mm bits
- bits with 10 mm drive x 30 mm length
- 1 each bit, hexagon socket 5, 6, 7, 8, 10, 12
- 1 each bit, multi-tooth M5, M6, M8, M10, M12
- 1 each bit, T-profile T20, T25, T30, T40, T45, T50, T55
- bits with 10 mm drive x 75 mm length
- 1 each bit, hexagon socket 5, 6, 7, 8, 10, 12
- 1 each bit, multi-tooth M5, M6, M8, M10, M12
- 1 each T-Star bit T20, T25, T30, T40, T45, T50, T55
with 12.5 mm (1/2") drive:
- 1 each hexagon socket 10, 11, 12, 13, 14, 15, 16, 17, 18, 19 mm
- 1 each Torx E socket E10, E11, E12, E14, E16, E18, E22, E24
- 1 each bit socket, hexagon socket 5, 6, 7, 8, 10, 12, 14, 16, 17, 18, 19, 22 mm
- 1 1/2" reversible ratchet 25 cm, 72 teeth, fine toothing
- 1 articulated handle
- 1 Bit adapter socket for 10 mm bits
- 1 each extension 50, 125, 250 mm
with 20 mm (3/4") drive:
- 1 each hexagon socket 21, 24, 27, 34, 36 mm
- 1 each 12-point socket 24, 30, 32, 36 mm

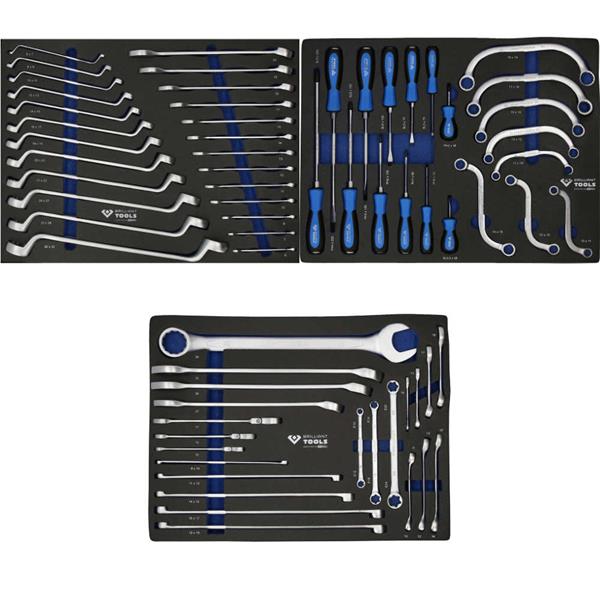

Drawer 2
screwdrivers and double ring wrench, 20 pcs.
- 10 screwdrivers with impact cap, Phillips PH0x75 mm, PH1x80 mm, PH2x38 mm, PH2x10 cm, PH3x15 cm, PH4x20 cm, slotted 3.0x75 mm, 5.0x75 mm, 6.0x38 mm, 6.0x10 cm, 8.0x15 cm, 9.5x20 cm
- 1 each C-shaped double ring wrench 10x11, 12x13, 14x15, 16x17, 18x19mm
-1 each of the S-shaped double-ended ring spanners 10x11, 12x13, 14x15 mm
Drawer 3
wrenches, 25 pcs.
-12 ring spanners, offset 6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 21x23, 24x27, 25x28, 30x32 mm
-13 combination spanners 6, 7, 8, 10, 11, 12, 13, 14, 15, 17, 19, 22, 24 mm
Drawer 4
wrenches, 22 pcs.
-3 ratchet ring spanners with joint 10, 13, 17 mm
-3 open double ring spanners 10x11, 12x13, 14x17 mm
-3 double ring spanners, Torx-E profile E10xE12, E14xE18, E14xE17
-5 double ring spanners, extra long 8x10, 11x13, 14x15, 16x17, 18x19 mm
-4 combination spanners 27, 30, 32, 36 mm
-4 combination spanners, extra short 10, 13, 17, 19 mm
Drawer 5
pliers, 11 pcs.
-1 water pump pliers, 25 cm
-1 side cutter 18 cm
-1 combination pliers, 18 cm
-1 needle-nose pliers, 90° bent, 30 cm
-1 needle-nose pliers, 45° bent, 30 cm
-1 needle-nose pliers, straight, 30 cm
-1 locking pliers 25 cm
-1 circlip pliers for internal retaining rings, straight,
33 cm -1 circlip pliers for external retaining rings, straight, 33 cm
-1 circlip pliers for internal retaining rings, angled, 33 cm
-1 circlip pliers for external retaining rings, angled, 33 cm
Drawer 6
impact wrenches and L-keys, 18 pcs.
-1 locksmith hammer, 1000g
-1 3/4" reversible ratchet
-1 3/4" sliding handle
-1 hexagon socket L-key set 1.5, 2, 2.5, 3, 4, 5, 6, 8,10
-6 impact ring spanners 24, 27, 30, 32, 36, 41 mm
drawer 7
impact socket wrenches, 40 pcs.
with 12.5 mm (1/2") drive:
- 1 each long hexagon impact socket 13, 14, 15, 16, 17, 18, 19, 21, 22, 24 mm
- 1 each impact bit socket, 78 mm long for hexagon socket screws 6, 8, 14, 17 mm
- 1 each impact bit socket, 78 mm long for Torx screws T40, T45, T50, T55, T60, T70
- 1 impact bit socket, 78 mm long for multi-tooth (XZN) screws M18
- 1 impact extension, 12.5 cm
- 1 impact ball joint
- 1 impact enlargement adapter 1/2"(F) x 3/4"(M)
with 20 mm (3/4") Drive:
-1 each hexagon impact socket, short 22, 24, 27, 30, 32, 33, 36, 38, 46 mm
-1 each hexagon impact socket, long 51, 60
-1 each impact bit socket, 10 cm long for Torx screws T80, T90, T100
-1 impact reduction adapter 3/4"(F) x 1/2"(M)
-1 impact ball joint

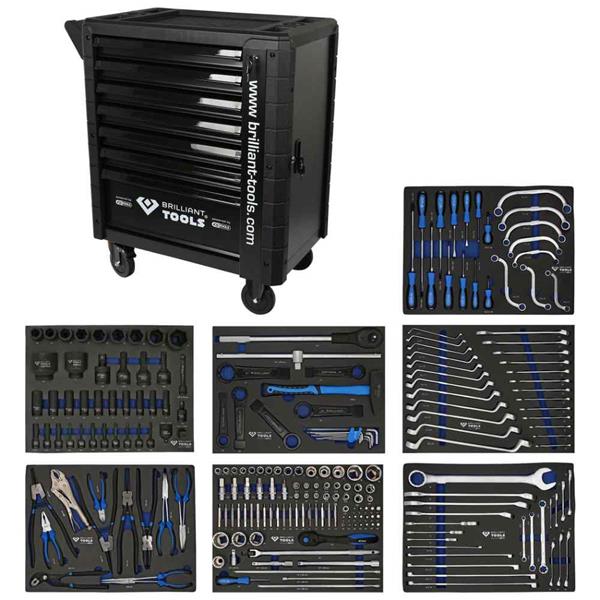

Characteristics
Number of block rolls: 2
Number of swivel castors: 2
Number of drawers 75mm: 6
Total number of drawers: 7
Extract type: Full extension
Load capacity per drawer: 35.0
Width in mm: 485
Height in mm: 970
Length mm: 780
Wheel lock: Yes
Drawer attributes2: Drawer guide with ball bearings
Drawer attributes3: Drawer 100% extendable
Drawer attributes4: Drawer can be locked individually
Parts: 225
