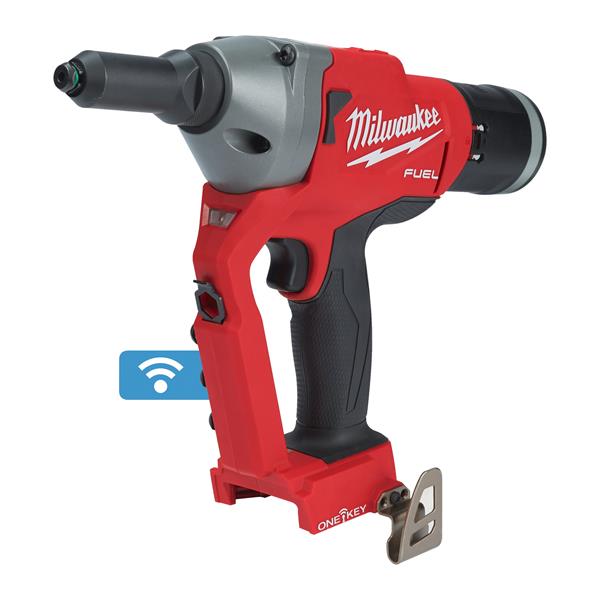

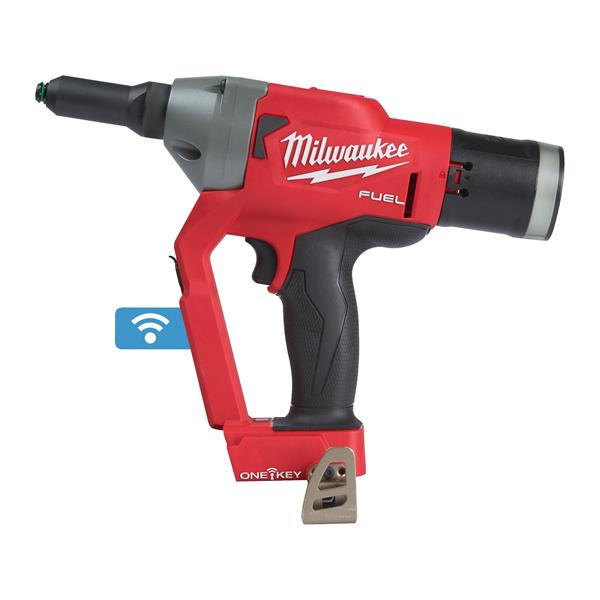

MILWAUKEE M18 Fuel Riveting Tool (Bare Unit) - M18onefprt-0X

€349.55 Ex. VAT

Code M18ONEFPRT-0X

Heavy-duty rivet tool (M18ONEFPRT-0X) from Milwaukee’s FUEL™ ONE-KEY™ series, delivering up to 20,000 N of pulling force, a 30 mm stroke length, and broad compatibility across 4.8 mm to 7.0 mm rivets in aluminium, steel, stainless steel, and copper.

Add to Basket
Additional Info

Features:

  • Delivers up to 20,000 N of pulling force with a 30 mm stroke length for effortless fastening of larger rivets

  • High productivity pulling up to 900 rivets (4.8 mm) or 500 rivets (6.4 mm) on a single M18™ 2.0 Ah battery charge

  • Wide material compatibility for driving 4.8 mm, 6.0 mm, 6.4 mm, and 7.0 mm rivets in aluminium, steel, stainless steel, and copper

  • Premium steel alloy 3-jaw design increases durability and extends operation intervals between jaw changes

  • Tool-free jaw access allows quick cleaning and easy maintenance on site

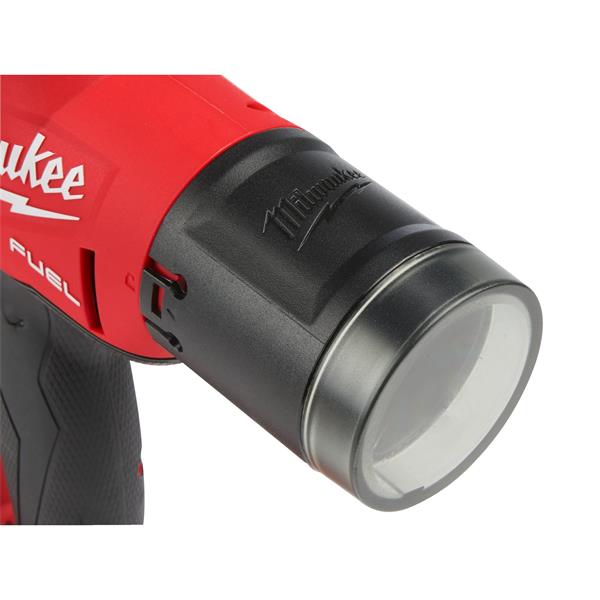

  • Transparent mandrel collection box prevents jams and offers clear visual capacity monitoring

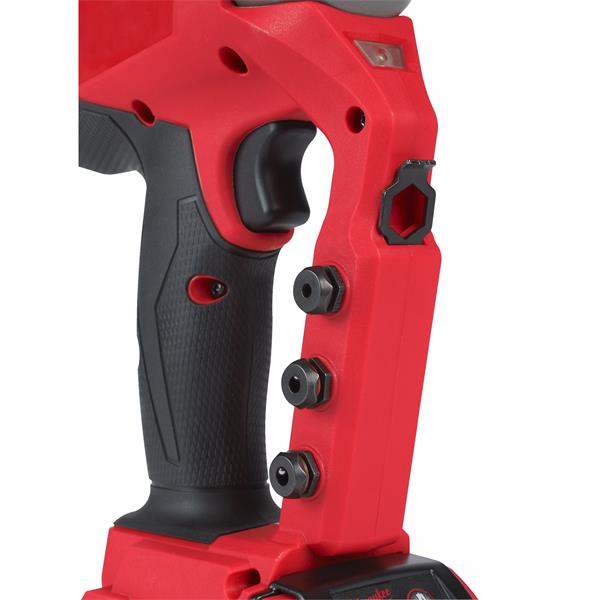

  • Onboard storage keeps extra nose pieces and the adjustment wrench organized and accessible

  • ONE-KEY™ enabled for cloud-based tool tracking, inventory management, and remote security locking

  • POWERSTATE™ brushless motor, REDLITHIUM™ technology, and REDLINK PLUS™ intelligence optimize power delivery and runtime

  • Fully compatible with all MILWAUKEE® M18™ batteries

Applications:

  • Fastening aluminium, steel, stainless steel, and copper blind rivets in fabrication and construction

  • Metal enclosure fabrication, HVAC ducting, roofing, cladding, and facade assembly

  • Commercial vehicle manufacturing, trailer repair, and transportation equipment maintenance

  • High-volume assembly line work and site installations requiring high pulling force and cordless mobility

Includes:

  • Milwaukee M18 ONEFPRT-0X M18 FUEL™ ONE-KEY™ Riveting Tool (Bare Unit)

  • 4 × Nose Pieces (4.8 mm, 6.0 mm, 6.4 mm, 7.0 mm)

  • Belt Hook

  • Allen Key / Wrench

Delivery & Collection Info

Free delivery on orders over €50/£50 + VAT to Ireland & NI on orders placed online only!

  • €4.95+VAT to Ireland & NI up to 25kg
  • €50 + VAT for rest of Europe on orders up to 25kg
  • Orders over 25kg to European countries is dependent on size and weight of order

We aim to provide next day delivery on all small items, 48 hour delivery to UK & Europe. Find out more information on our delivery.

For Collections you will recieve an Email when your product is ready to collect
Back to results page
Click to view complete product details

Specifications:

  • Max. Pulling Force: 20,000 N

  • Stroke Length: 30 mm

  • Rivet Diameter Range: 4.8–7.0 mm

  • Supplied Nose Piece Sizes: 4.8 mm, 6.0 mm, 6.4 mm, 7.0 mm

  • Max. Rivets Popped (M18 B2): 900 × 4.8 mm / 500 × 6.4 mm

  • Voltage: 18 V

  • Weight with Battery (EPTA): 2.5 kg (with M18 B2)

  • Sound Power Level (Lwa): 92 dB(A) (±3 dB(A))

  • Sound Pressure Level (Lpa): 81 dB(A) (±3 dB(A))

  • Vibration Level: 2.5 m/s² (±1.5 m/s²)

  • Dimensions (H × W × D): 317 × 63 × 273 mm

  • Unit Type: Bare Tool
