300-1 4R Compact Mig Welding Machine 9135H

SWP 300-1 4R Compact Mig Welding Machine 9135H

€1,450.00 Ex. VAT

Code 9135H

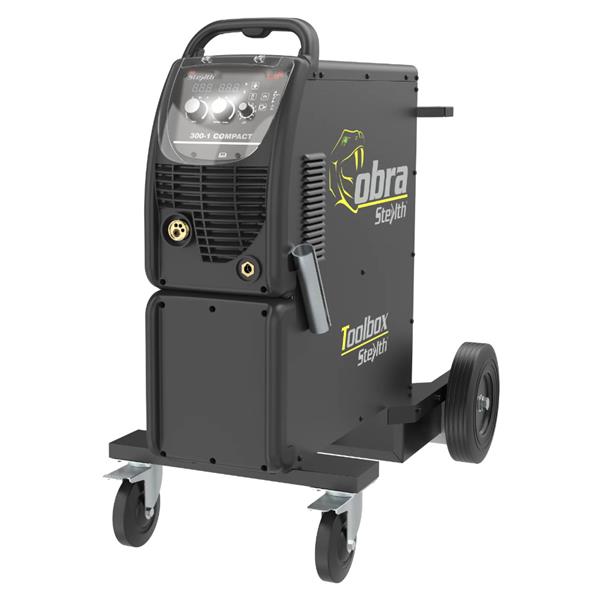

The Stealth 300-1 4R Compact MIG Welding Machine offers a single phase 230v operation, built-in tool box, and a convenient trolley mount. Expertly designed for MIG welding, this compact machine delivers precision and ease for your welding projects.

Add to Basket

Additional Info

New PWM technology & IGBT inverter technology

MIG/MAG with Manual

MIG waveform control for great arc control

2T/4T trigger operation with crater control setting

Adjustable pre-flow, post flow, burn back and soft start setting

Dual LED display provides real-time feedback

Internal wire feeder, gear driven for up to 300mm spool

Euro style MIG torch connection

IP21S rating for environmental/safety protection

Tolerant to variable power supply

Integrated trolley

5 Year Warranty

Delivery & Collection Info

Free delivery on orders over €50/£50 + VAT to Ireland & NI on orders placed online only!

€4.95+VAT to Ireland & NI up to 25kg
€50 + VAT for rest of Europe on orders up to 25kg
Orders over 25kg to European countries is dependent on size and weight of order

We aim to provide next day delivery on all small items, 48 hour delivery to UK & Europe. Find out more information on our delivery.

For Collections you will recieve an Email when your product is ready to collect

Back to results page

Click to view complete product details

Top Products this month

SWP Stealth Digi-Arc 175Lt Arc Welder 9021H

€290.00 Ex. VAT

SWP Cut 45 Pfc Lcd Plasma Cutting Machine 9130H

€765.00 Ex. VAT

SWP Digi-Ig 200 Lcd Pfc 9005H

€850.00 Ex. VAT

SWP 200-1 2R Compact Mig Welding Machine 9134H

€950.00 Ex. VAT

SWP Cobra By Stealth 300-1 4R + Swf Mig 9136H

€1,950.00 Ex. VAT

SWP 201P Ac/Dc Lcd Mv Tig Welding Machine 9111H

€960.00 Ex. VAT

SWP Variable Shade Auto-Darkening Black Welding Helmet 3037

€39.70 Ex. VAT

SWP Digi-Tig 200 Dc 9010H

€560.00 Ex. VAT

Specification

Input voltage: 230v 50/60hz
effective current: 42A
Control system: MCU
Display: 5" LED
Remote control torch: Yes
3 proof: Moisture, Salt spray, Corrosion
Max input current: 66A
Cooling: AF
Generator friendly: YES
Input power: 15.2 KW
Welding current: 30-300A
wire feeding speed: 1.5-18m/min
Efficiency:87.9%
Insulation class: F
Duty cycle (40 C 10 mins): 40% @ 300A, 60% @ 245A, 100% @ 190A
Protection class: IP21S
Weight: 51 Kg
Dimensions: 930 x 460 x 940 mm
