LCD screen
Lift TIG and HF start modes
Adjustable arc force, hot start & anti-stick control
Electronic HF TIG arc ignition system
High performance on ultrathin surfaces
2T/4T Spot trigger control
Temperature, voltage and current sensors
Up/Down button remote control torch
Supplied with

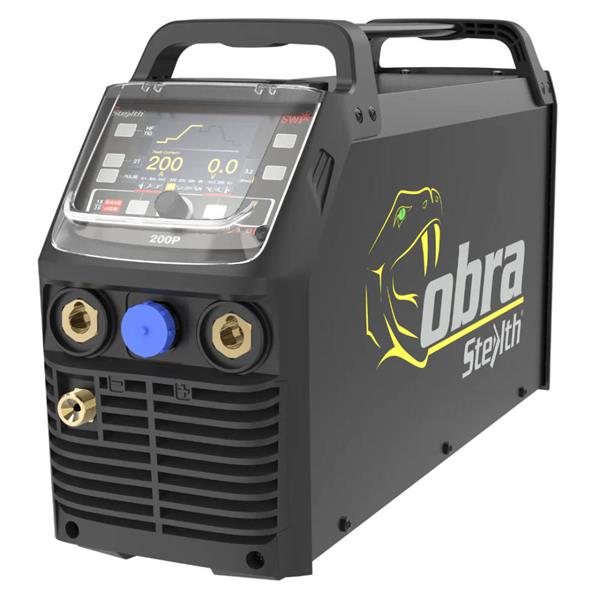

The Cobra by Stealth TIG 200P LCD comes with a 3m return cable, 12 pin plug, carrying strap and a gas hose all packed into convenient carry case, making it easy to transport and store your welding equipment safely.
Voltage: 90-275
Power factor correction: 0.99
Easy arc striking: HF
Control system: 60%
Lcd Display: 4.3"
Generator friendly: Yes
Rated input current (A):
110V TIG: 31.2 | 110V MMA: 38.3
230V TIG: 18.4 | 230V MMA: 29.1
Duty cycle 110V TIG (A) (40°C to 10 min): 60% @ 160A, 100% @ 125A
Duty cycle 230V TIG (A) (40°C to 10 min): 60% @ 200A, 100% @ 155A
Welding current range (A):110V TIG: 3-160, 110V MMA: 10-130, 230V TIG: 3-200, 230V MMA: 10-200
Effective current (A): 110V TIG: 29.6 | 110V MMA: 24.2, 230V TIG: 16.2 | 230V MMA: 18.4
Efficiency:85.3%
Protection class: IP21S
Net weight: 9kg
Dimensions (mm):580 x 160 x 330
Rated input power (KW):110V TIG: 3.4 | 110V MMA:4.2, 230V TIG: 4.5 | 230V MMA 6.7
Duty cycle 110V MMA (A) (40°C to 10 min): 30% @ 130A, 100% @ 100A
Duty cycle 230V MMA (A) (40°C to 10 min): 35% @ 200A, 60% @ 155A, 100% @ 120A
