Pricing Ex. VAT Inc. VAT

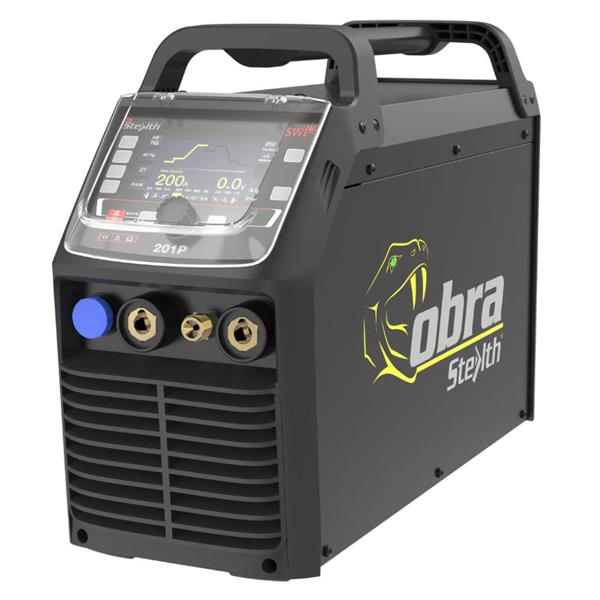

SWP 201P Ac/Dc Lcd Mv Tig Welding Machine 9111H

€960.00 Ex. VAT

Code 9111H

Discover the versatility and reliability of the 201P AC/DC LCD MV TIG Machine. Designed to handle  multi-voltage capability from 90–275V and a power factor correction of 0.99, it delivers consistent performance across various settings.

Add to Basket
Additional Info

Featuring advanced AC/DC functionality and adjustable pulse frequency, this welder is built for precision and flexibility. With a 60% heavy-duty cycle, smooth arc starting, and the ability to weld at a low current of just 3A, it’s both efficient and user-friendly. Generator compatible and backed by a 5-year warranty, it offers both performance and peace of mind.

Delivery & Collection Info

Free delivery on orders over €50/£50 + VAT to Ireland & NI on orders placed online only!

  • €4.95+VAT to Ireland & NI up to 25kg
  • €50 + VAT for rest of Europe on orders up to 25kg
  • Orders over 25kg to European countries is dependent on size and weight of order

We aim to provide next day delivery on all small items, 48 hour delivery to UK & Europe. Find out more information on our delivery.

For Collections you will recieve an Email when your product is ready to collect
Back to results page
Click to view complete product details

Voltage: 90-275
Power factor correction: 0.99
Easy arc striking: HF
Control system: MCU
Heavy duty cycle: 60%
LCD display: 4.3"
Generator friendly: yes
Rated input current:
110V TIG AC: 31.4 | 110V TIG DC: 33
110V MMA AC: 36.6 | 110V MMA DC: 39
230V TIG AC: 20.1 | 230V TIG DC: 20.8
230V MMA AC: 28.7 | 230VMMA DC: 30.2

Duty cycle 110V TIG (A) (40°C to 10 min): 60% @ 160A, 100% @ 125A
Duty cycle 230V TIG (A) (40°C to 10 min): 40% @ 200A, 100% @ 155A

Welding current range (A):
110V TIG AC: 5-160 | 110V TIG DC: 3-160
110V MMA: 10-130
230V TIG AC: 5-200 | 230V TIG DC: 3-200
230V MMA: 10-200

Efficiency: 86%
Protection class: IP21S
Net weight: 13.2kg

Effective current:
10V TIG AC: 24.3 | 110V TIG DC: 25.6
110V MMA AC: 28.4 | 110V MMA DC: 30.2
230V TIG AC: 15.6 | 230V TIG DC: 16.1
230V MMA AC: 17 | 230VMMA DC: 17.9

Rated input power (KW):
110V TIG AC: 3.5 | 110V TIG DC: 3.6
110V MMA AC: 4 | 110V MMA DC: 4.3
230V TIG AC: 4.6 | 230V TIG DC: 4.8
230V MMA AC: 6.6 | 230VMMA DC: 6.9

Duty cycle 110V MMA (A) (40°C to 10 min): 30% @ 130A, 100% @ 100A
Duty cycle 230V MMA (A) (40°C to 10 min): 35% @ 200A, 60% @ 155A, 100% @ 120A

Dimensions: 550 x 190 x 360
